Monarch Reece inconnel

Specs:

• Length: 4.9” without mount
• Diameter: 1.625”
• Bore: .243 Cal (.275”)

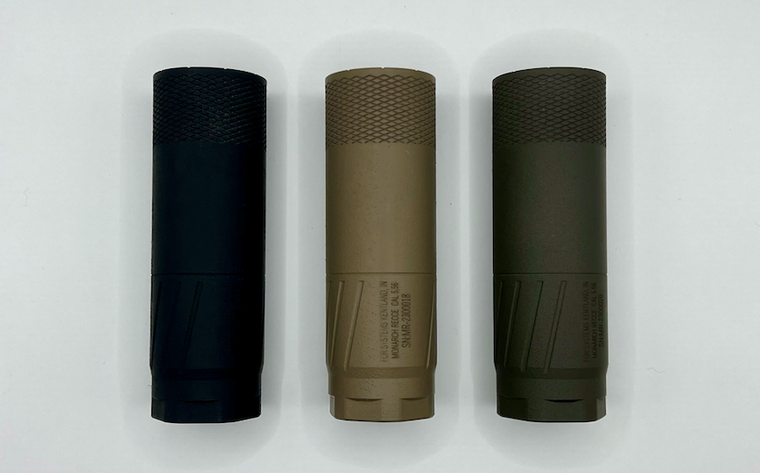

• Finish: Raw or Black/Flat Dark Earth/Olive Drab Green C-Series Cerakote
• Material: Inconel 718
• Weight: 12.9 oz without Mount
• Barrel length restrictions: 7.5” 5.56. 10.5” for 6 Max and 6 ARC. 14.5” for 6mm Creedmoor and other Short Action cartridges
• Full Auto Rating: Be Conservative and allow for cool down time every 270 rounds.

• Design Highlights
• -”PFM” baffle technology (Preferential Flow Management) is incredibly efficient in Suppressing sound, while maintaining minimal back pressure
• -Venting array helps direct sound away from the shooter and bystanders behind the muzzle
• -Incredible flash suppression for a high flow rate design
• -718 inconel allows for heavy abuse and firing schedule
• -DMLS manufacturing method allows for design elements not seen in other technologies
• -Excellent sound suppressor for suppressor in its size class.
• -Integral DMLS printed flash hider end cap
• -Knurling helps with  removal/Tightening of suppressor
• -1.375×24 HUB threads allows user to run mounting system of their choice

MONARCH RECCE USERS MANUAL

Mounts: All 1.375×24 RH TPI Mounts will work. Distance from shoulder to blast baffle is 1.55”. Please check the mount and suppressor with an alignment rod while mounted to an empty/unloaded rifle.

Fire Schedule: This is a duty can made of Inconel 718. It can handle abuse but please allow for a cool down period of 5 mins every 270 rounds. See website for barrel length restrictions. www.frontofriflesystems.com

Cleaning: We recommend the Monarch Recce be cleaned in an ultrasonic cleaner with C.A.T 206, Breakthrough Suppressor Cleaner, Bore Tech Decimator, Simple Green, or gray bottle CLR every 5000-10,000 rounds or when you feel performance has been reduced. We can do this for a flat fee.
